Equipment

CNC Equipment: 14 Mills, 13 Lathes, Saws and Inspection

We run 27 precision CNC machines in a 21,000 square foot facility in Fruitport, Michigan.

CNC mills

14 machines

We offer versatile CNC milling for precision components and complex geometries.

Doosan VC3600 Swing Tables
Haas VF2
Haas VF4
Haas VF3TT
Haas VF1
Doosan DNM 5700
Fanuc Robo Drill
4th Axis Rotary Capability

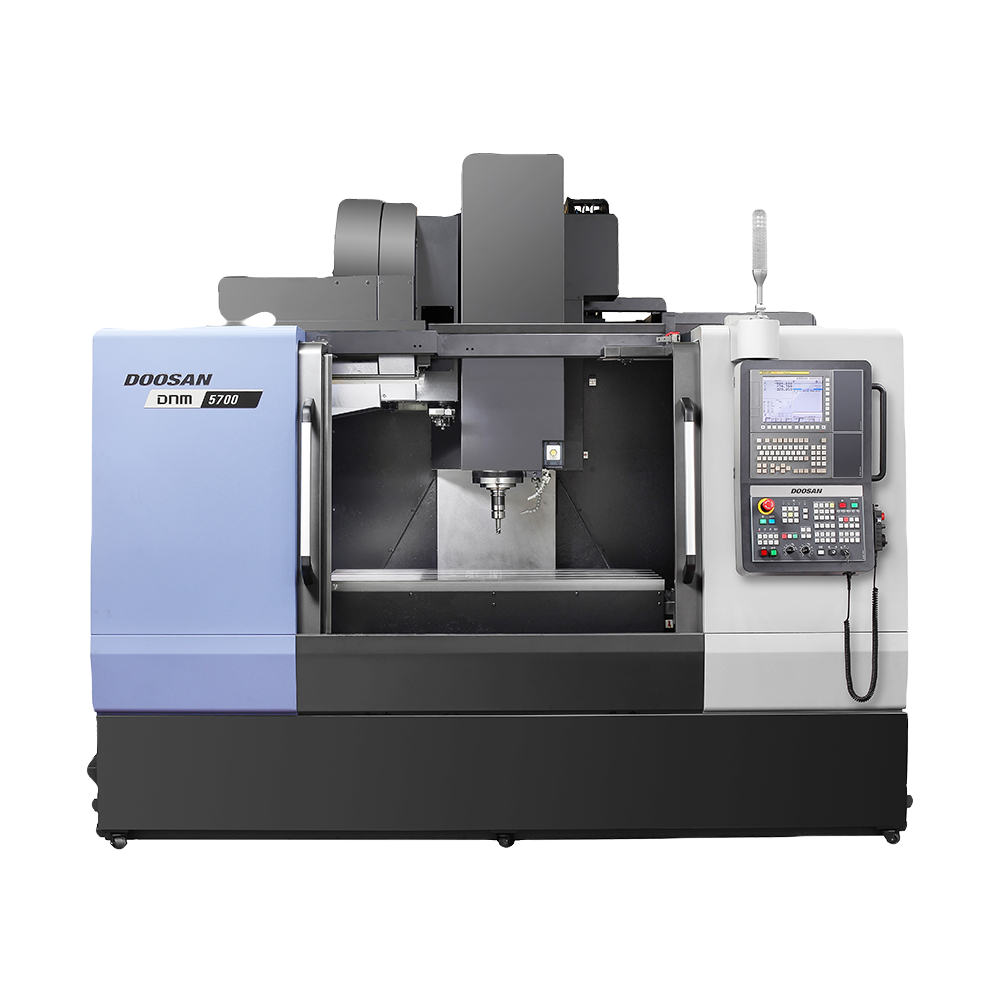

Doosan DNM 5700

Doosan DNM 5700 specifications
Table	51.2" x 22.4"
Table capacity	Up to 2,205 lbs
Tool holder	30 piece
Spindle speed	8,000 RPM
Spindle torque	211 ft/lb
X-axis travel	41.3"
Y-axis travel	22.4"
Z-axis travel	20"

CNC lathes

13 machines

We offer precision CNC turning with a range of spindle capacities, up to 3" through-spindle capacity, including several bar feed lathes for longer, small component runs.

Doosan Puma 2600L
Doosan Lynx 2100L
Haas ST30
Haas SL10
Haas SL20
Nakamura-Tome
Up to 3" through-spindle Capability

Doosan Puma 2600L

A Doosan Puma CNC lathe with a blue control panel and a large viewing window in the door — Doosan Puma 2600L CNC lathe.

Doosan Puma 2600L specifications
Max turning diameter	14.8" (375 mm)
Max turning length	50.4" (1,280 mm)
Chuck size	10" (254 mm)
Spindle speed	3,500 RPM

Sawing

We offer reliable material preparation for efficient production.

Dake Euromatic 370PP 14.5" blade
Scotchman 14"

Dake Euromatic 370PP

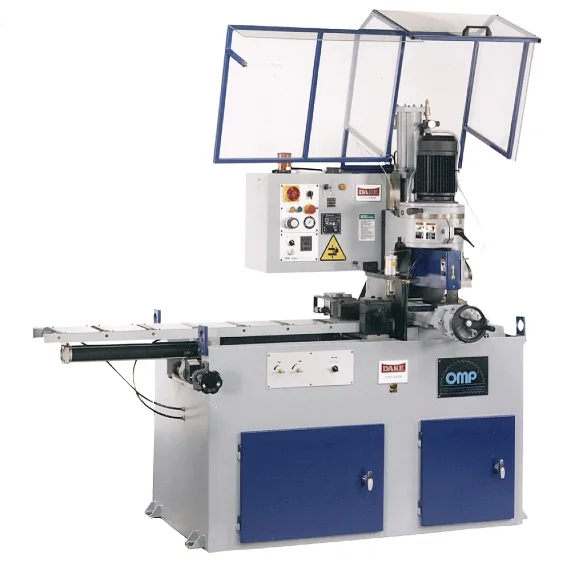

A Dake automatic cold saw with a blue and gray cabinet, control panel and a clear safety guard raised above the blade — Dake Euromatic 370PP automatic cold saw.

A ferrous automatic cold saw offering aggressive precision and stamina.

Dake Euromatic 370PP features
Blade	14.5"
Head rotation	45° R / 90° L
Wear plates	Two, removable

Inspection

Arm Master 3D Gage Powered by Verisurf
Mitutoyo PH-A14 Optical Comparator

Quality and ISO 9001:2015

Arm Master 3D Gage

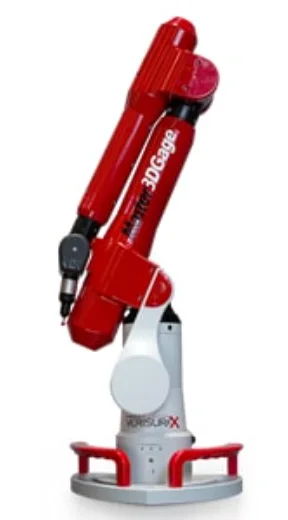

A red Master3DGage portable CMM measuring arm on its round base — Arm Master 3D Gage, powered by Verisurf.

Master3DGage® is a complete CMM hardware and software solution for inspection and reverse engineering. The multi-axis portable CMM features absolute encoders for quick start-up and highly accurate and precise measurements.

Arm Master 3D Gage features
Type	Multi-axis CMM arm
Measuring volume	1.2 m (4 ft)
Encoders	Absolute

Software & controls

Mastercam CAD/CAM for mills and lathes
ECI JobBOSS
Fanuc Controls G+M coding

Request a Quote

Fits our machines? Send the drawing.

Send part drawings by email to office@leemfg.net, with your company name and part number.

Request a Quote Email a Drawing
